A Euramco Group brand

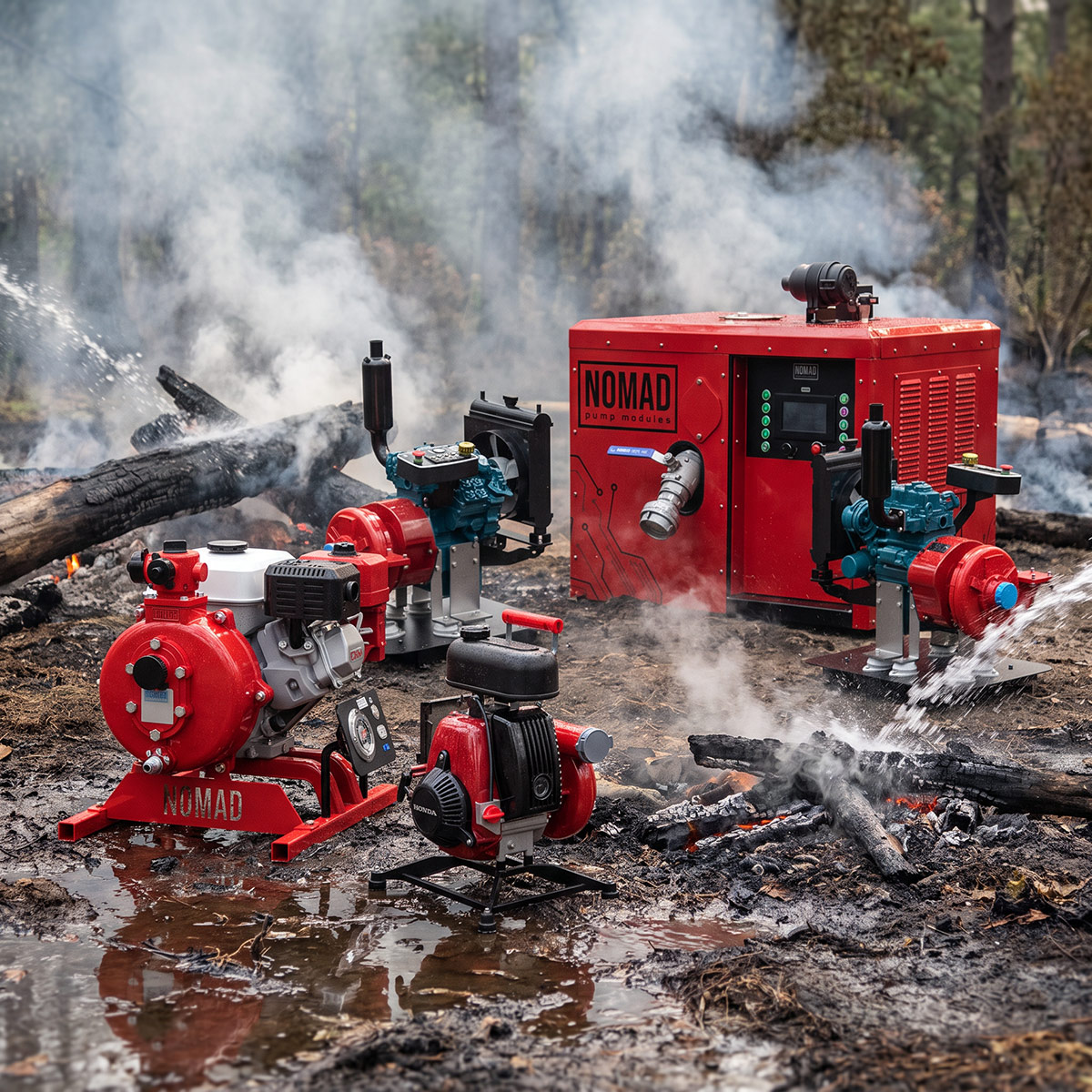

NOMAD Pump ModulesThe modular fire pump platform
Portable and vehicle-mounted fire pumps on one scalable architecture – petrol, diesel and electric power, and the same operator philosophy at every panel.
- Five models available now
- Petrol, diesel and 72 VDC electric
- Designed for PRO//connect fleet integration
One platformHydraulics, power and controls configured around the mission.
Three decisions, one platform
Every NOMAD pump is specified the same way, so a fleet can grow without teaching crews a new interface each time.
Hydraulics
The pump end sets the performance envelope. Choose it by the flow, pressure and deployment the mission demands.
Power
Petrol, diesel or electric – matched to deployment, regional preference and emissions targets.
Controls
One operator philosophy at the panel; a CAN-based architecture behind it for diagnostics and vehicle integration.
Choose the platform by how you deploy
Start with the mission, not the fuel type.
NOMAD P1
Ultra-light initial attack. Single-stage pump on a Honda GXH50, carried by one firefighter.
305 L/min · 6 bar · 9 kg81 gpm · 87 psi · 20 lb
Operating points
NOMAD P2
Two-stage pumping on a Honda GX200 for portable work that needs pressure more than volume.
285 L/min · 9.6 bar · 28.5 kg75 gpm · 139 psi · 63 lb
Full specification
NOMAD P5X
P5 platform hydraulics without a permanent vehicle installation.
Data on requestPerformance, connections and configuration issued by Euramco
Request specifications
NOMAD P5d
Vehicle-mounted diesel on the Kubota Super Mini D602, operated through Smart Control at 12 VDC.
800 L/min · 8.5 bar · 110 kg211 gpm · 123 psi · 243 lb
Operating points
NOMAD P5e
72 VDC module with a 10 kW liquid-cooled NOMAD motor, IP65 rated, on Smart Control.
830 L/min · 8.5 bar · 53 kg219 gpm · 123 psi · 117 lb
Operating points
NOMAD P1e
The P1 platform on removable battery power, with vehicle dock charging for fixed or deployable use.
To be announcedRegister to receive specifications on release
Register interestCompare the range, then read the curve
Maximum flow and maximum pressure are opposite ends of a pump curve, not a promise that both occur at once. Size from the operating points below.
| Model | Deployment | Power | Weight | Max flow | Max pressure | Status |
|---|---|---|---|---|---|---|
| P1 | Portable initial attack | Petrol · Honda GXH50 | 9 kg20 lb | 305 L/min81 gpm | 6 bar87 psi | Available |
| P2 | Portable high pressure | Petrol · Honda GX200 | 28.5 kg63 lb | 285 L/min75 gpm | 9.6 bar139 psi | Available |
| P5X | Portable | Petrol | Specification issued on request | Available | ||
| P5d | Vehicle-mounted | Diesel · Kubota D602 | 110 kg243 lb | 800 L/min211 gpm | 8.5 bar123 psi | Available |
| P5e | Vehicle-mounted | Electric · 72 VDC | 53 kg117 lb | 830 L/min219 gpm | 8.5 bar123 psi | Available |
| P1e | Portable / dockable | Electric · removable battery | To be announced | Coming soon | ||
Figures are approximate and vary by configuration and market. Confirm the final duty point against an approved performance curve.
P1 · published operating points
Single-stage centrifugal pump; Honda GXH50, 2.1 hp / 1.6 kW; manual recoil start. One 1½-inch male suction inlet and one 1½-inch male pressure outlet, BSP or NPSH.
P1X-N-H-PT-C0-E00-I02-AU
P2 · specification
Two-stage centrifugal pump; Honda GX200; manual recoil or electric start. One 1½-inch suction inlet; 1½-inch and 1-inch pressure outlets, BSP or NPSH.
P2X-T-H-PT-C0-E00-I02-AU
P5d · published operating points
Single-stage centrifugal pump; Kubota Super Mini D602; NOMAD Smart Control at 12 VDC. One 2-inch BSP male suction inlet and one NW65 flange pressure outlet.
P5d-N-K-VM-C3-E12-I02-AU
P5e · published operating points
Single-stage centrifugal pump; 10 kW liquid-cooled NOMAD motor to 3,600 rpm; Smart Control at 72 VDC; IP65. One 2-inch BSP male suction inlet and one NW65 flange pressure outlet.
P5e-N-W-VM-C3-EHV-I02-AU
Familiar at the panel. Advanced behind it.
Firefighters should not have to operate a tablet to operate a fire pump. The primary interaction stays direct, visible and glove-friendly.
- Analog pressure gauge
- Glove-friendly control knob
- Sealed rubber function buttons
- OLED status display
A connected asset for the fleet
P5 platforms are designed for the PRO//connect ecosystem. Depending on model, configuration and region, the architecture can support:
Configuration matters. Connectivity hardware, software, subscriptions and network services vary by model and region. Euramco can confirm what is standard, optional or available for yours.
Start the right conversation
Brigades & fleets
Match models to your duty points and standardise operation across the fleet. Plan a fleet reviewOEM builders
CAN / J1939 integration, remote panels and mounting data for vehicle programs. Get integration dataDistributors
Range positioning, market availability and configuration support. Talk distributionProcurement
Specifications, part numbers and compliance detail for tender documents. Request documentationNOMAD Pump Modules is a Euramco Group brand, manufactured through a global production network operating under the Euramco Global Performance System.
- Australia & New Zealand
- Europe
- North America
- Latin America
- Asia
Questions we are asked first
What is the difference between P5X, P5d and P5e?
Can we specify BSP or NPSH connections?
Is remote connectivity standard on every NOMAD pump?
When will the P1e be available?
Send us the duty point. We will send back the configuration.
How the pump is deployed, the flow and pressure you need, the power source available, the connection standard, and whether vehicle or fleet integration is required.
